Resistance corrosion rate of the collector

detail

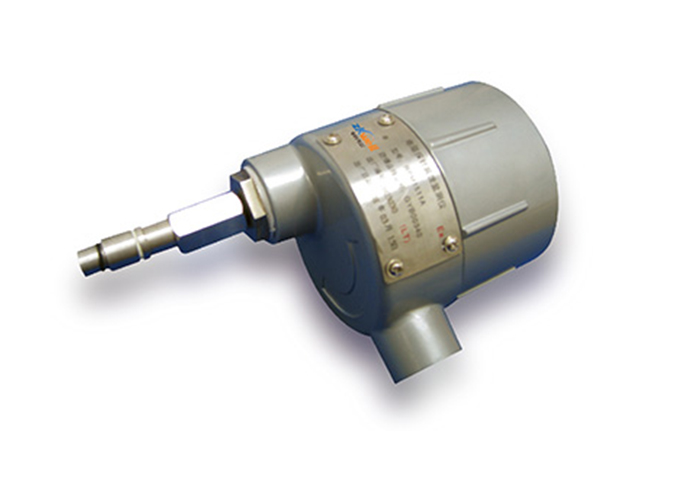

Resistance corrosion rate of the collector

Model: ZK7800 (for low temperature part)
【technical parameters:】

Measuring range	0.1～250μm（The probe diameter1.0mm）
Measurement resolution	0.1μm
Working voltage	18～36VDC
The power consumption of the instrument	0.9W
The environment temperature	－25℃～＋70℃
Explosion-proof type	flame-proof
Explosion-proof type	Through the adapter and connect the probe connection
Data transmission way	RS485

【Packing parameters：】

weight（kg）		size （mm）
Instrument net weight	2.1	Size of instrument	φ110×120
A single gross weight packing	2.60	A single package sizes	195×195×200
Four packing gross weight	9.18	Four package sizes	390×390×205
Packing weight (8 sets)	17.8. 6	Packing size eight	390×390×410

> > monitor the corrosion resistance probe

Model: ZK7800H (for high temperature parts)

【Technical parameters:】

Measuring range	0.1～250μm（The probe diameter1.0mm）
Measurement resolution	0.1μm
Working voltage	18～36VDC
Working voltage	0.9W
The environment temperature	－25℃～＋70℃
Explosion-proof type	flame-proof
Explosion-proof type	Through the adapter and connect the probe connection
Data transmission way	RS485

【Packing parameters】

Weight（kg）		size （mm）
Instrument net weight	2.1	Size of instrumen	φ110×120
A single gross weight packing	2.60	A single package sizest	195×195×200
Four packing gross weight	9.18	Four package sizes	390×390×205
Packing weight (8 sets)	17.8. 6	Packing size eight	390×390×410

category：Resistance corrosion online monitoring
