Double probe compensation precision inductive corrosion monitoring

 Existing on-line corrosion monitoring system, are based on single probe model, under normal circumstances, the probe material the same as the measured pipe material, pipe for indirect monitoring corrosion conditions. Double probe for precise inductance corrosion monitoring system, as the name implies, namely a inductance probe specimens with double probe design, at the same time of corrosion monitoring of pipeline, also the scene of the material provides a powerful tool for industry. Double probe for precise inductance probe corrosion monitoring system technology advantage is as follows:

> the first double probe inductance probe, facilitate the on-site process evaluation and selection conditions;

> fast response corrosive thinning, in the annual corrosion rate under the condition of 0.254 mm/a, can respond to an hour to the corrosion of change;

> for corrosion system requirements is not high, is applicable to any uniform corrosion thinning of the environment;

> the differential circuit and temperature compensation technology, strong anti-jamming capability, measuring signal stability;

> collector broken network storage capability of the 7 days, but in the case of network impassability one-time export data;

> same time measurement temperature function of measured medium, and fast response to temperature changes, high accuracy, temperature measurement is also used to correct temperature influence on the measured results, reduce costs;

> > system structure

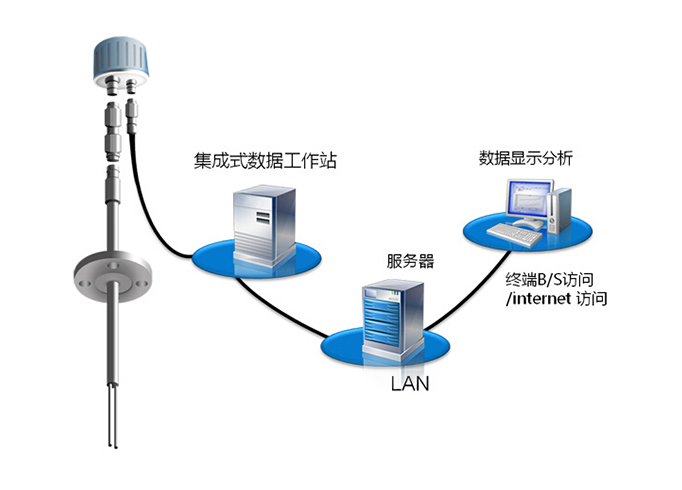

Double probe compensation precision inductance probe corrosion monitoring system of the system include: double probe for precise inductance probe, the compensation precision inductance probe data collector, data workstation (or conversion module, power supply and communication industrial PC) and other major modules. (system structure can see "integrated corrosion online monitoring system").
